The Memory-align state machine is a secondary state machine that includes an executor (the Memory-align SM executor) and an internal Memory-align PIL (program) that is a set of verification rules written in the PIL language. The Memory-align SM executor is written in two languages: Javascript and C/C++.

​
Overview

It checks memory reads/writes using a 32-byte word access, while the EVM can read and write 32-byte words with offsets at a byte level. The table below shows a sample of possible byte-addressed and 32-byte-addressed memory layouts for the same content (three words). ADDRESSBYTE00xc410x17⋮⋮300x81310xa7320x88330xd1⋮⋮620xb7630x23\begin{array}{|c|c|} \hline \mathbf{ADDRESS} &\mathbf{BYTE} \\ \hline \mathtt{0} &\mathtt{0xc4} \\ \mathtt{1} &\mathtt{0x17} \\ \mathtt{\vdots} &\mathtt{\vdots} \\ \mathtt{30} &\mathtt{0x81} \\ \mathtt{31} &\mathtt{0xa7} \\ \mathtt{32} &\mathtt{0x88} \\ \mathtt{33} &\mathtt{0xd1} \\ \mathtt{\vdots} &\mathtt{\vdots} \\ \mathtt{62} &\mathtt{0xb7} \\ \mathtt{63} &\mathtt{0x23} \\ \hline \end{array} ADDRESS32-BYTE WORD00xc417...81a710x88d1...b723\begin{array}{|c|c|} \hline \textbf{ADDRESS} & \textbf{32-BYTE WORD} \\ \hline \mathtt{0} &\mathtt{0xc417...81a7} \\ \mathtt{1} &\mathtt{0x88d1...b723} \\ \hline \end{array} The relationship between the 32-byte word addressable layout and the byte addressable layout is called memory alignment, and the Memory-align SM is the state machine that checks the correctness of this relationship. In more detail, we have to check the following memory operations:
  • MLOAD\mathtt{MLOAD}: It receives an offset and returns the 32 bytes in memory starting at that offset.

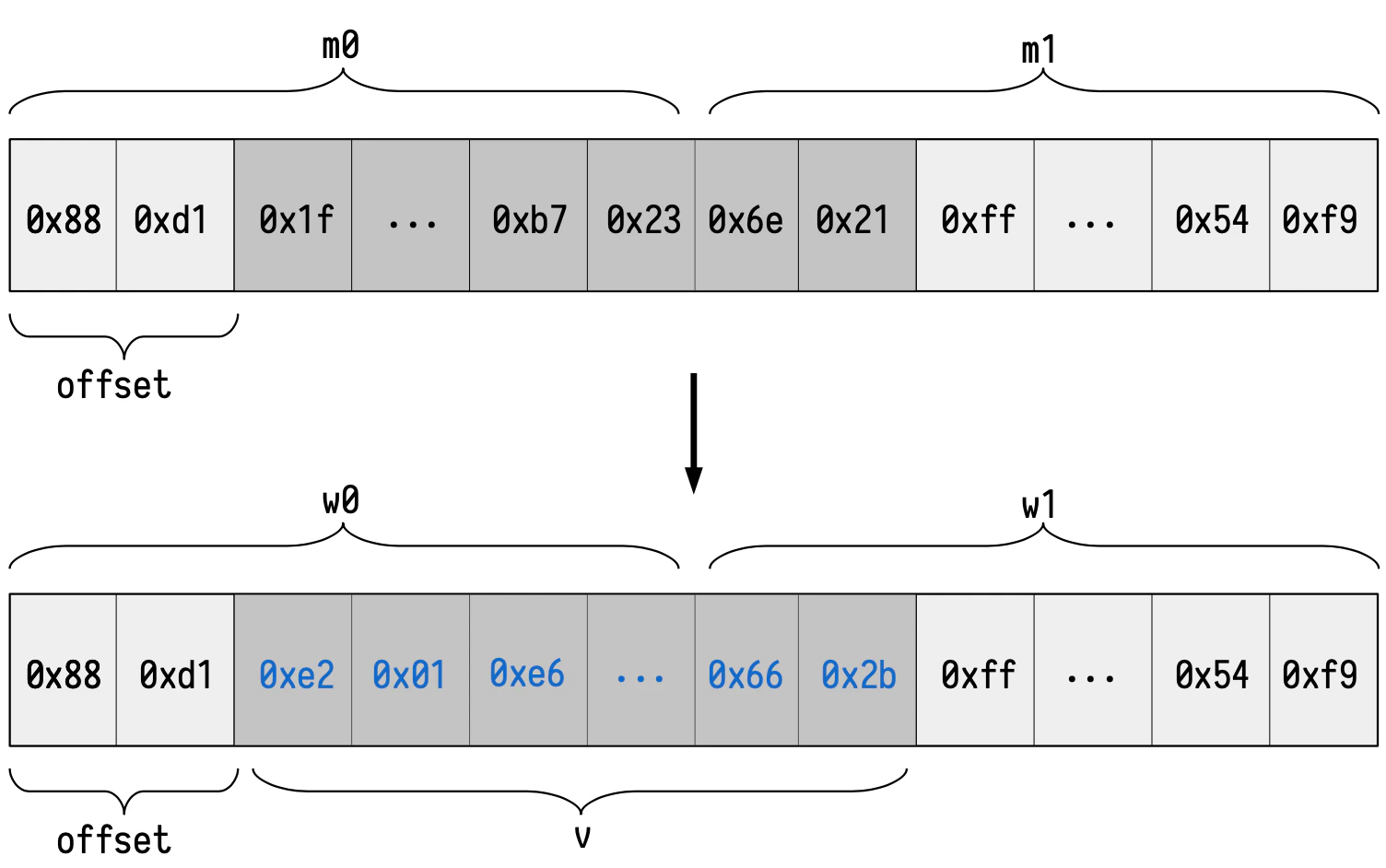

  • MSTORE\mathtt{MSTORE}: It receives an offset and saves 32 bytes from the offset address of the memory.
  • MSTORE8\mathtt{MSTORE8}: It receives an offset and saves one byte on that address of the memory.

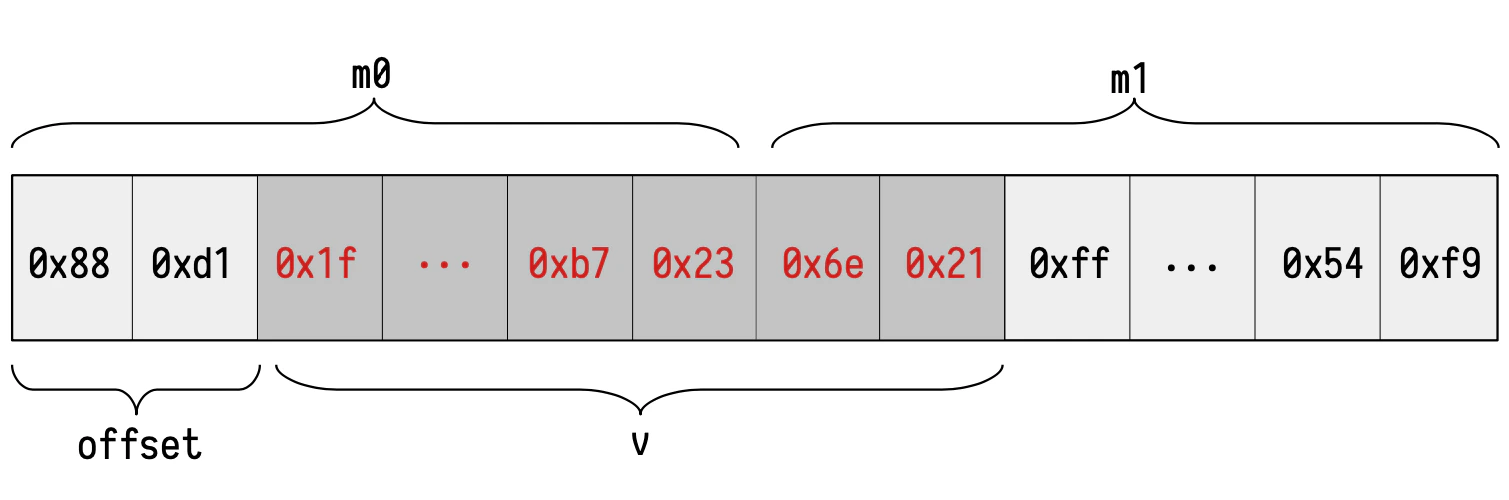

In general cases, MLOAD\mathtt{MLOAD} requires reading bytes of two different words. Given that the content of memory is represented as shown in the above table, and that the EVM is addressed at the byte level, the value we should get when checking a read from the EVM of a word starting at the address 0x22\mathtt{0x22} is as follows: val=0x1f⋯b7236e21.\mathtt{val} = \mathtt{0x1f \cdots b7236e21}. We denote the content of the words affected by an EVM memory read as m0\mathtt{m}_0 and m1\mathtt{m}_1. In our example, these words are the following: m0=0x88d11f⋯b723,m1=0x6e21ff⋯54f9.\mathtt{m}_0 = \mathtt{0x} \mathtt{88d11f} \cdots \mathtt{b723}, \quad \mathtt{m}_1 = \mathtt{0x} \mathtt{6e21ff} \cdots \mathtt{54f9}. We define a read block as the string concatenating the content of the words affected by the read: m0∣m1\mathtt{m}_0 \mid \mathtt{m}_1. The below figure shows the affected read words m0\mathtt{m}_0 and m1\mathtt{m}_1 that form the affected read block and the read value val\mathtt{val} for a read from the EVM at address 0x22\mathtt{0x22} in our example memory. Schema of MLOAD Example Let us now introduce the flow at the time of validating a read. Suppose that we want to validate that if we perform an MLOAD\mathtt{MLOAD} operation at the address 0x22\mathtt{0x22}, we get the previous value 0x1f⋯7236e21\mathtt{0x1f\dotsb7236e21}. At this point, the Main state machine performs several operations. First of all, it has to query for the values m0\mathtt{m}_0 and m1\mathtt{m}_1. Henceforth, it must call the Memory SM in order to validate the previous queries. Observe that it is easy to extract the memory positions to query from the address 0x22\mathtt{0x22}. In fact, if aa is the memory position of the MLOAD\mathtt{MLOAD} operation, then m0\mathtt{m}_0 is always stored at the memory position ⌊a32⌋\lfloor \frac{a}{32} \rfloor and m1\mathtt{m}_1 is stored at the memory position ⌊a32⌋+1\lfloor \frac{a}{32} \rfloor + 1. In our example, a=0x22=34a = \mathtt{0x22} = 34. Hence, m0\mathtt{m}_0 is stored at the position ⌊3234⌋=0x01\lfloor \frac{32}{34} \rfloor = \mathtt{0x01} and m1\mathtt{m}_1 is stored at the position ⌊3234⌋+1=0x02\lfloor \frac{32}{34} \rfloor + 1= \mathtt{0x02}. Secondly, we should extract the correct offset\mathtt{offset}. The offset\mathtt{offset} represents an index between 00 and 3131 indicating the number of bytes we should offset from the starting of m0\mathtt{m}_0 to correctly place val\mathtt{val} in the block. In our case, the offset\mathtt{offset} is 22. Similarly as before, it is easy to obtain the offset from aa. In fact, the it is equal to aa (mod 32)(\mathrm{mod} \ 32). Now, the Main SM checks, via a Plookup to the Memory-align state machine, that val\mathtt{val} is a correct read given the affected words m0\mathtt{m}_0 and m1\mathtt{m}_1 and the offset\mathtt{offset}. That is, we should check that the value val\mathtt{val} can be correctly split into m0\mathtt{m}_0 and m1\mathtt{m}_1 using the provided offset\mathtt{offset}. Similarly, MSTORE\mathtt{MSTORE} instruction requires writing bytes in two words. The idea is very similar, but we are provided with a value \val that we want to write into a specific location of the memory. We denote by w0\mathtt{w}_0 and w1\mathtt{w}_1 the words that arise from m0\mathtt{m}_0 and m1\mathtt{m}_1 after the corresponding write. Following our previous example, suppose that we want to write: val=0xe201e6…662b\mathtt{val} = \mathtt{0xe201e6\dots662b} in the address 0x22\mathtt{0x22} of the byte-addressed Ethereum memory. We are using the same m0\mathtt{m}_0 and m1\mathtt{m}_1 (and since we are writing into the same address as before) and they transition into: w0=0x88d1e201e6…,w1=0x662bff…54f9.\mathtt{w}_0 = \mathtt{0x88d1} \mathtt{e201e6\dots},\quad \mathtt{w}_1 = \mathtt{0x} \mathtt{662b} \mathtt{ff\dots54f9}. Schema of MSTORE example The Main state machine needs to perform several operations. Given an address addr\mathtt{addr}, an offset value offset\mathtt{offset} and a value to be written val\mathtt{val}. As seen before, the Main SM is in charge of reading the zkEVM memory to find m0\mathtt{m}_0 and m1\mathtt{m}_1 from the given address and offset. Of course, the validity of this query should be performed with a specific Plookup into the Memory SM, as before. Now, the Main SM can compute w0\mathtt{w}_0 and w1\mathtt{w}_1 from all the previous values in a unique way. The way of validating that we are providing the correct w0\mathtt{w}_0 and w1\mathtt{w}_1 is to perform a Plookup into the Memory-align SM. That is, we check that the provided values w0\mathtt{w}_0 and w1\mathtt{w}_1 are correctly constructed from the provided val\mathtt{val}, m0\mathtt{m}_0, m1\mathtt{m}_1 and offset\mathtt{offset} values. Finally, the last opcode MSTOREE\mathtt{MSTOREE} works similarly, but it only affects one word m0\mathtt{m}_0. Moreover, we can only write one byte and hence, only the less significant byte of val\mathtt{val} is considered into the write. Observe that, in this opcode, m1\mathtt{m}_1 and w1\mathtt{w}_1 are unconstrained.

​
Source code

The Polygon zkEVM repository is available on GitHub. Memory-align SM executor: sm_mem_align.js Memory-align SM PIL: mem_align.pil
